ThinkSign LED Window Sign with StudioCloud Basic Software to Create and Manage Content
Looking to transform your storefront into a customer magnet? The ThinkSign LED window signs are your digital solution. Designed for high-impact digital displays, these direct view LED hanging signs boast a 4.0mm pixel pitch, ensuring crisp visuals from a distance. With brightness levels reaching up to 5,000 nits, your messages will shine brightly, day or night. The included StudioCloud Basic Software allows for seamless content management, enabling you to schedule and update your displays with custom made graphics remotely from any device. Ideal for retail environments, convenience stores, and markets, the Beacon Edge signs help businesses capture attention and convey timely information. Retailers can promote sales, daily specials, and new arrivals, while small markets and C-stores can highlight promotions, seasonal items, or community messages. This device is only rated for indoor use. The lightweight design ensures easy installation, and the robust construction guarantees durability. Elevate your on-premise marketing with ThinkSign's cutting-edge LED window sign solution.

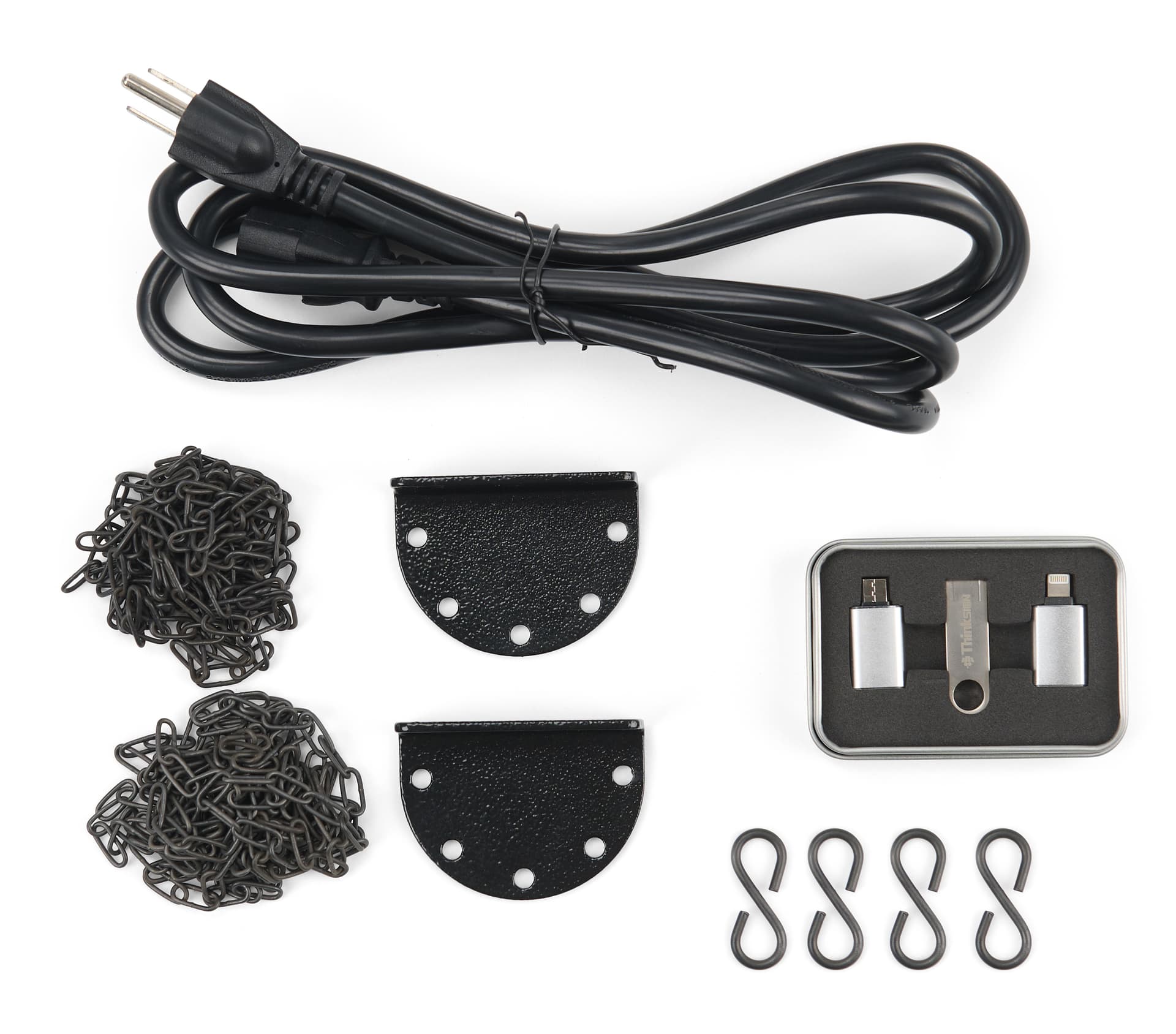

Includes:Mounting Hardware, USB Thumb Drive, USB-C Adapter, USB Lightning Adapter
- 28" Direct View LED Digital Display
- 4.0mm Pixel Pitch
- Compatible with Free StudioCloud Basic Software
- Includes Mounting Hardware for Easy Setup
- Landscape Orientation for Optimal Viewing
- Supports Image and Video Files
- Indoor Use Only
- 1 Year Warranty
- 28" Direct View LED Digital Display
- 4.0mm Pixel Pitch
- Free StudioCloud Basic Software
- Includes Mounting Hardware for Easy Setup
- Indoor Use Only
| SKU | XH028NVB40 |
|---|---|
| Viewable Width x Height | 25.3" x 12.5" |
| Material | Aluminum |
| Orientation | Landscape |
| Color | Black |
| Regulatory & Safety Listings | ETL Certified , FCC |

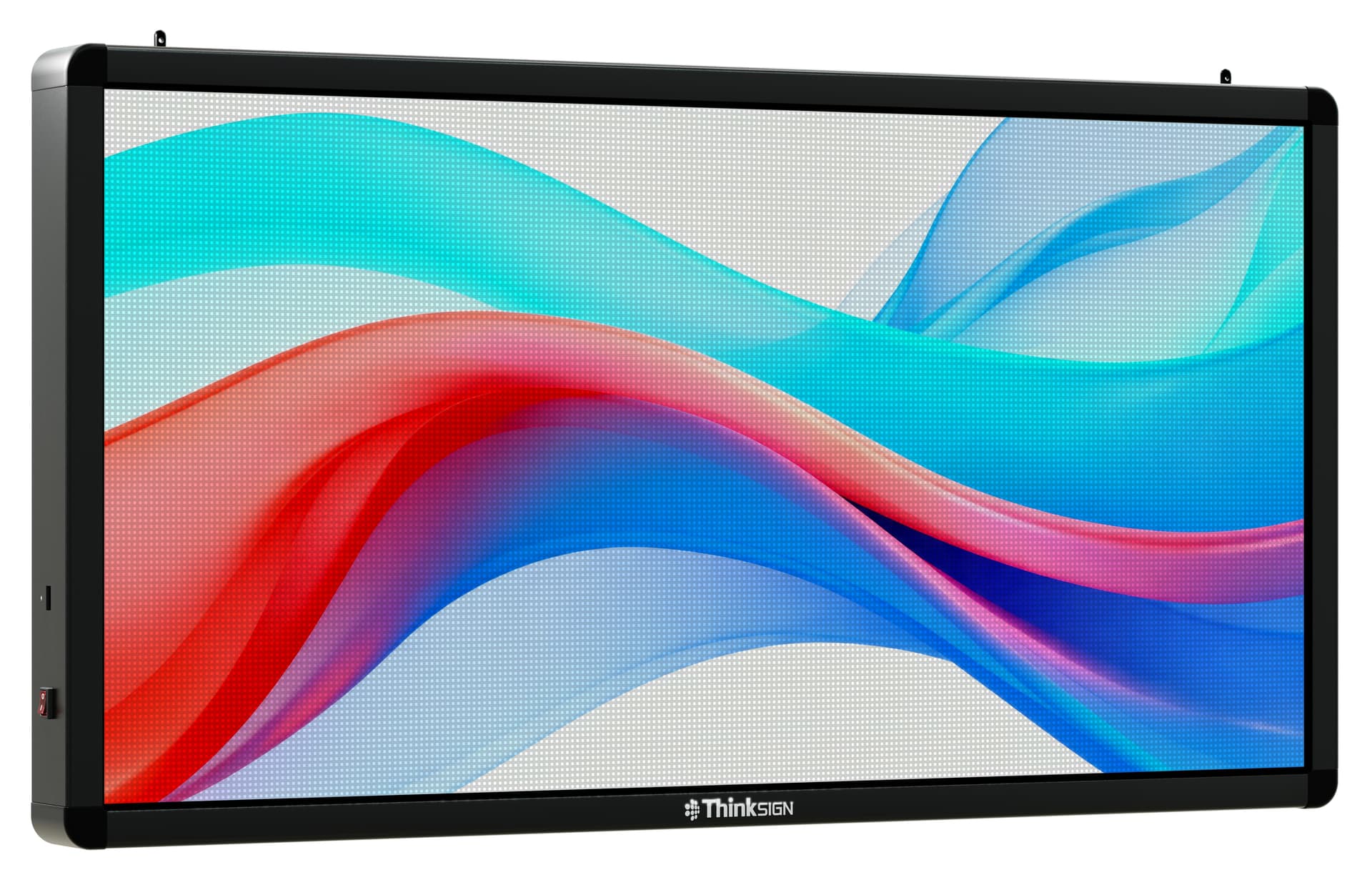

| Screen Size | 28" |
| Screen | LED 4.0mm Pixel |
| Backlight Type | LED (Direct) |
| Refresh Rate | 3840Hz |
| Supported Photo Files | JPEG, BMP, PNG, GIF |
| Internal Storage | 4GB |
| Warranty | 1-Year Limited Warranty |
| Working Temp (°F) - Min, Max | 14-113° |
| Software Package | ThinkSign Studio Cloud Basic |
| Response Time | 200ms |
| Contrast Ratio | 5000:1 |
| Input Voltage | AC 120 V / 60 Hz |
| Antenna | Internal |
| Chromaticness | RGB |
| Storage Humidity | 40~60% |
| Playback Mode | Cycle |

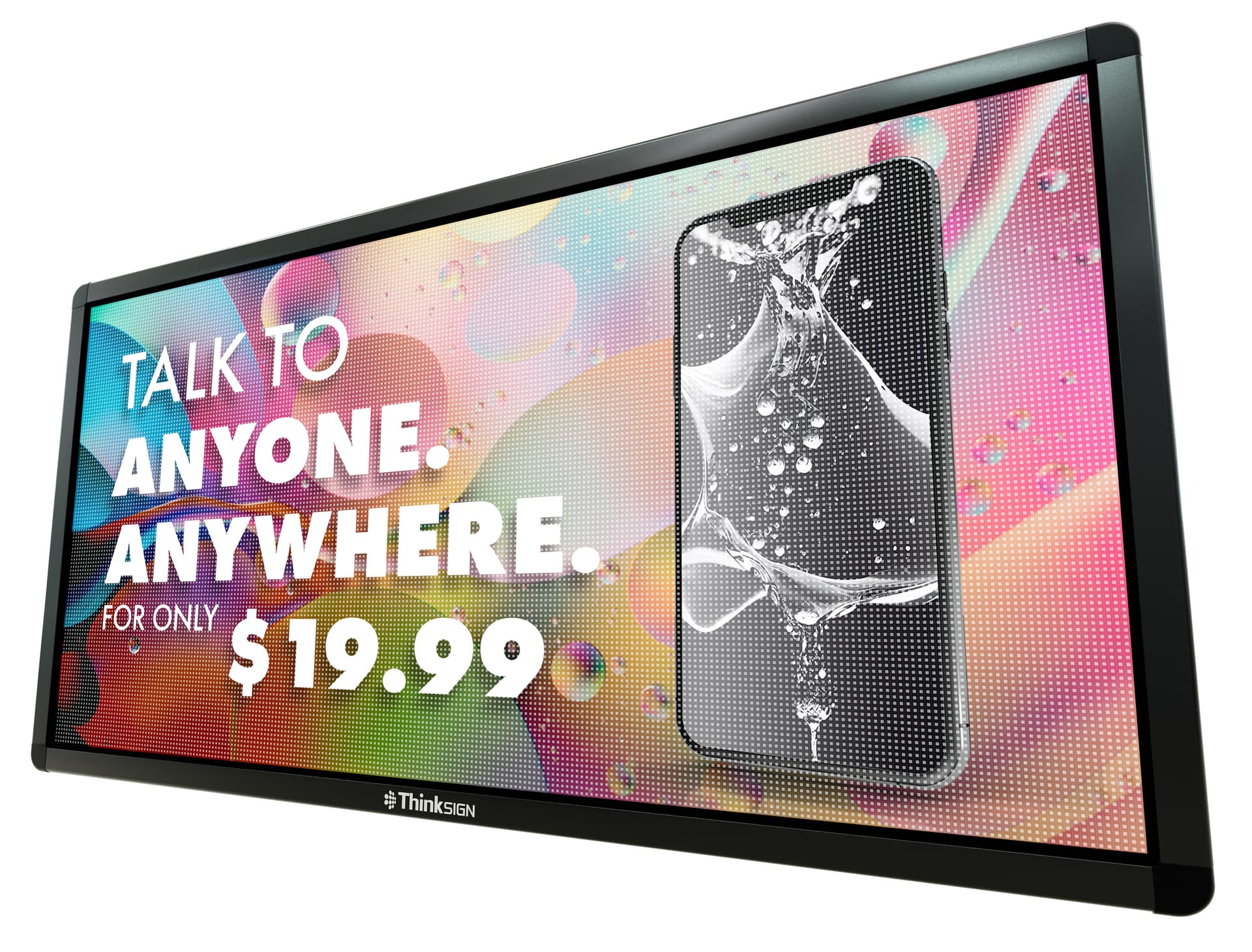

| Overall Width x Height x Depth | 27.0" x 15.0" x 2.8" |
|---|---|
| Weight | 17.0lbs |

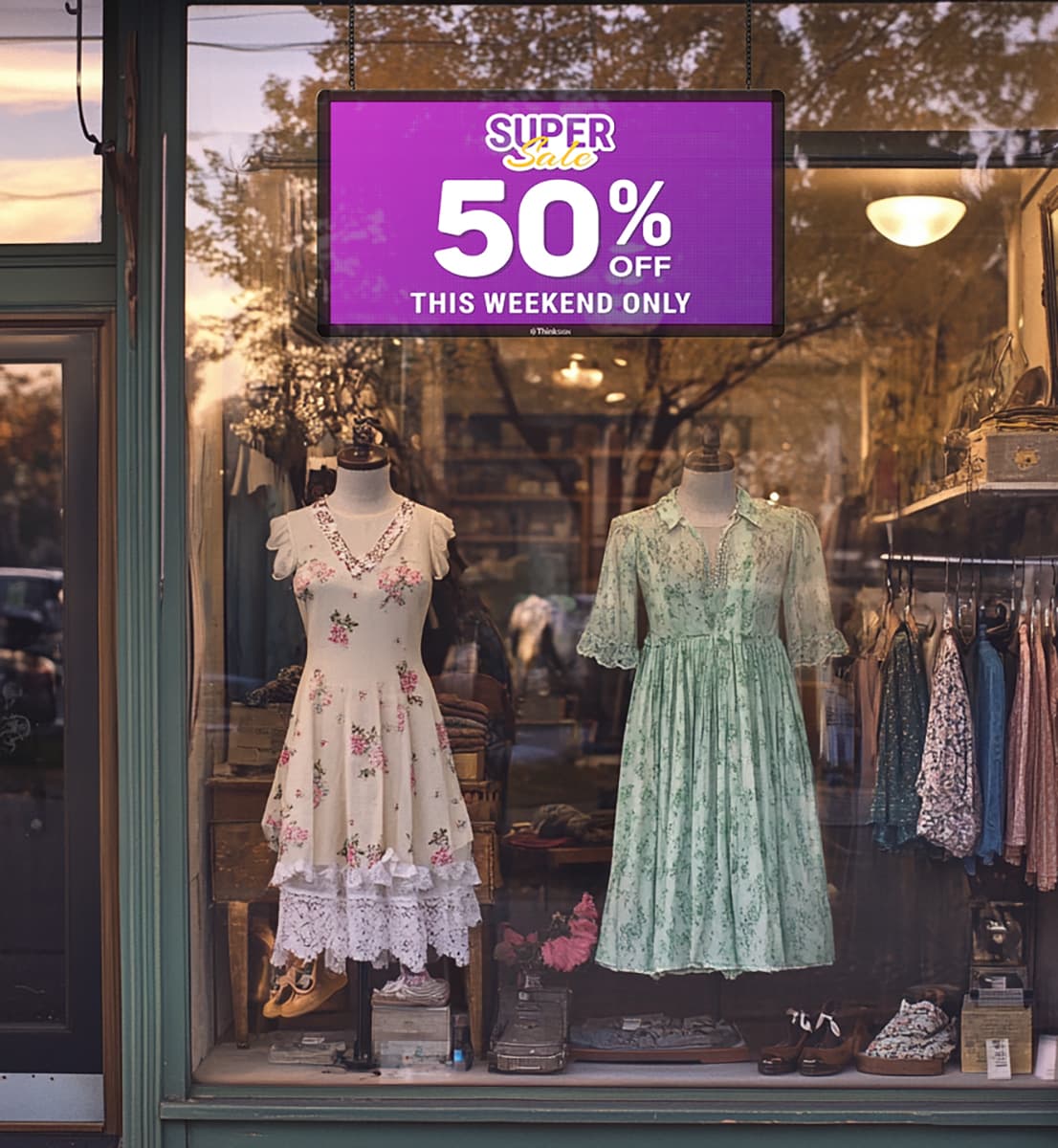

| Placement Type | Hanging |
| Features | Digital Screen |
| Power Cord Length | 118.0" |
| Cable or Chain Length | 5.0' |
| Brightness | 5000.0 nits |
| Panel Type | Direct View LED |
| Resolution | 160x80 |
| Power Consumption | 120.0W |
| Supported Video Files | MP4 |
| Aspect Ratio | 2:1 |
| Storage Temp (°F) - Min, Max | 0-68° |
| Viewing Angle | 140°(H) / 130°(V) |
| Panel Life | 30,000hrs |

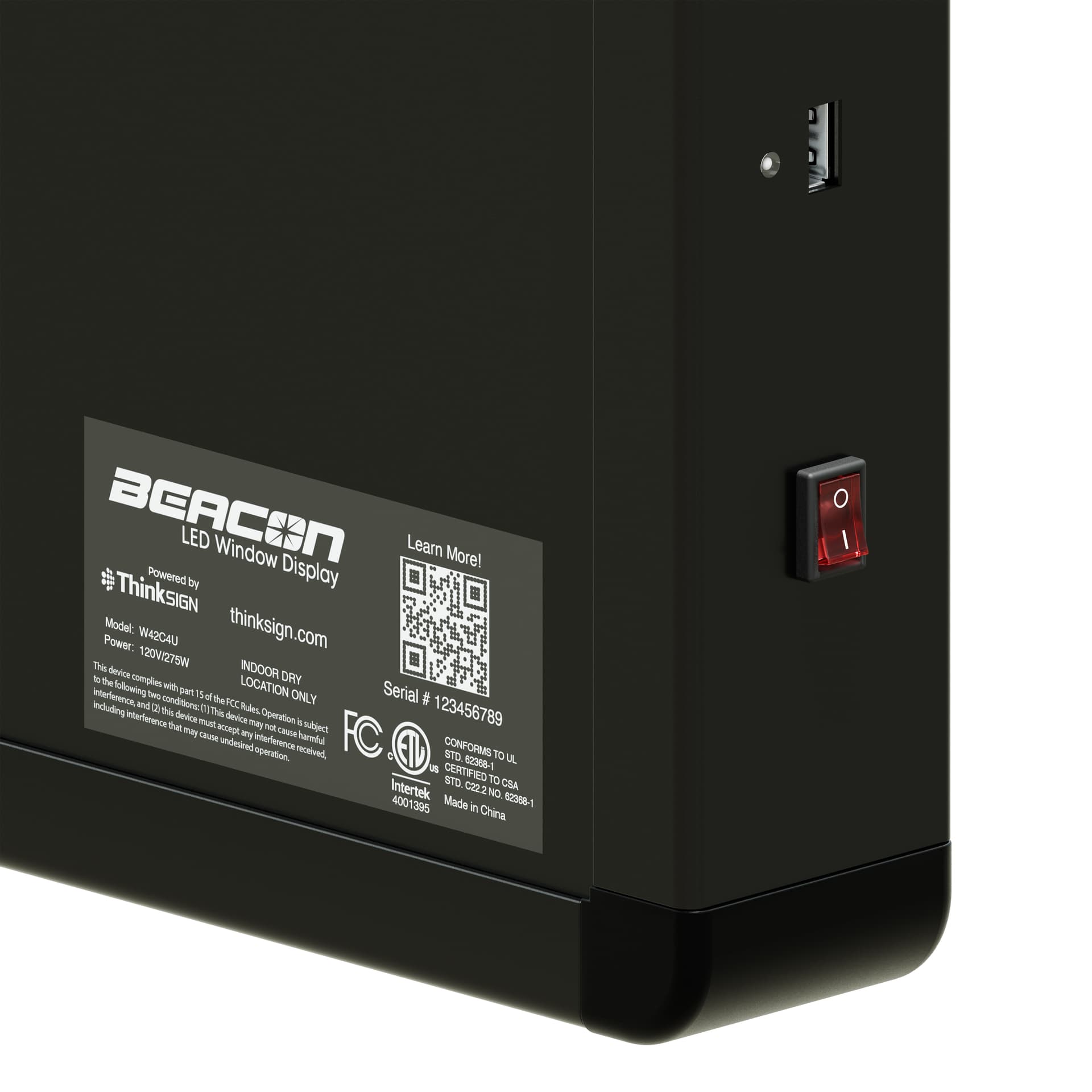

| USB 2.0 | One |
| Panel Technology | Non-Touch, LED |
| Pixel Pitch | 4.0mm |
| Color Saturation | 18% |
| Operating Humidity | 10~90% |
| Maximum Operating Time (Days/Hours) | 7 Days / 24 Hours |
